M12X1.75 D6 3FX VA3

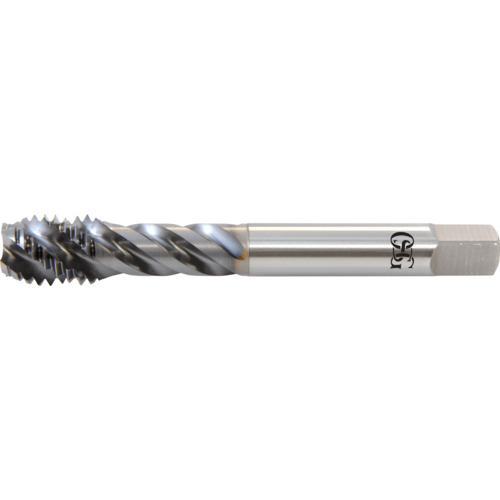

Spiral Flute Tap; M12 × 1.75 mm ; 110 mm OAL ; 3 FL ; HSSE-V3 ; Vanadium ; D6 ; Series 347
| Thread Diameter Size (TDZ) | M12 | Cutting Edge Material | HSSE-V3 |
| Thread Pitch (TP) | 1.75 mm | Thread Tolerance Class (TCTR) | D6 |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 110 mm | Chamfer | 2.5P-3P |
| Usable Length (LU) | 49 mm | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 347 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.115
