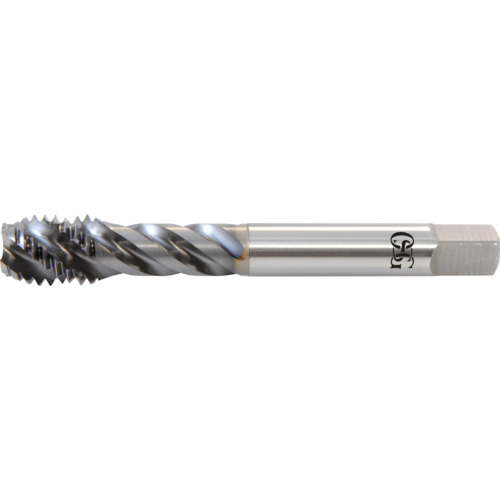

7/8-14 H6 4FX VA3 TAP-TICN
Spiral Flute Tap; 7/8″ - 14 ; 125 mm OAL ; 4 FL ; HSSE-V3 ; Vanadium ; H6 ; Series 307
| Thread Diameter Size (TDZ) | 7/8″ | Cutting Edge Material | HSSE-V3 |
| Threads per Inch (TPI) | 14 | Thread Tolerance Class (TCTR) | H6 |
| Thread Standard | UNF | Tool Type | High Performance Tap |
| Overall Length (OAL) | 125 mm | Chamfer | 2.5P-3P |
| Usable Length (LU) | 1.886″ | Coating | Vanadium |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 307 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
1.15000
Package Height
.95000
Package Weight
.4300
