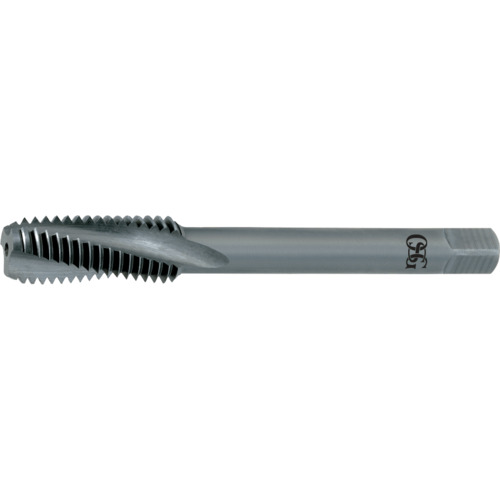

M5x0.8 3Fl OH3 Carbide Spiral Flute Tap-Bright
Spiral Flute Tap; M5 × 0.8 mm ; 60 mm OAL ; 3 FL ; Carbide ; Uncoated ; OH3 ; Series 389
| Thread Diameter Size (TDZ) | M5 | Thread Tolerance Class (TCTR) | OH3 |
| Thread Pitch (TP) | 0.8 mm | Tool Type | Spiral Flute Tap |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 60 mm | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 22 mm | Flute Type | Spiral |
| Usable Length (LU) | 23.9 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 5.5 mm | Style | Spiral Flute |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Series/List # | 389 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.035
