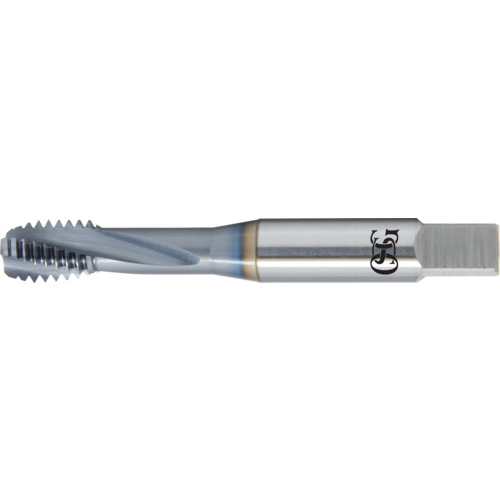

7/16-20 Dia. - H5-3 FL - VC10 - Steam Oxide - Modified Bottoming - Spiral Flute Tap
Spiral Flute Tap; 7/16″ - 20 ; 3-5/32″ OAL ; 3 FL ; HSS-PM ; Black Oxide ; H5 ; Series 313
| Thread Diameter Size (TDZ) | 7/16″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 20 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 3-5/32″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 1-7/16″ | Flute Type | Spiral |
| Usable Length (LU) | 1.713″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 313 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
5.00000
Package Width
.70000
Package Height
.70000
Package Weight
0.085
