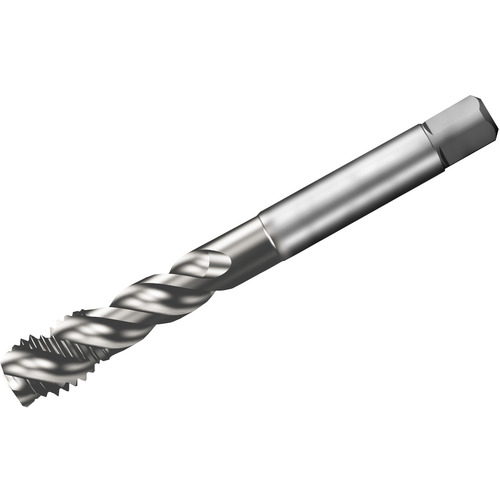

T300-XM101DF-7/8 B150 COROTAP 300
Spiral Flute Tap; 7/8″ - 14 ; 140 mm OAL ; 4 FL ; Carbide ; Uncoated ; 2B
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 7/8″ | Applicable Material | | Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 14 | Cutting Edge Material | Carbide |
| Thread Standard | NF | Thread Tolerance Class (TCTR) | 2B |
| Overall Length (OAL) | 140 mm | Standard | DIN2184 |
| Thread Cutting Part Length (THL) | 25 mm | Coating | Uncoated |
| Usable Length (LU) | 92.8 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.5300
