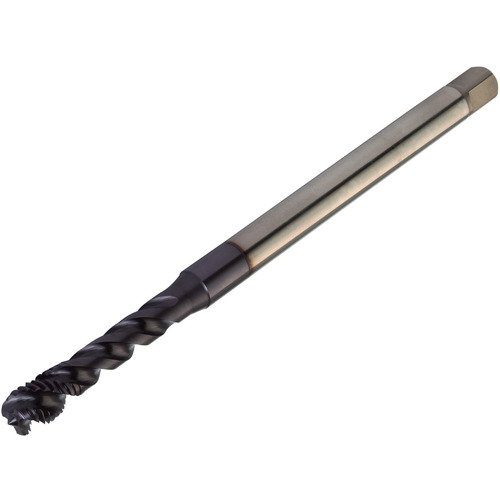

E615M4 Sprl Flt XL 45d M4 x .7
Spiral Flute Tap; M4 × 0.7 mm ; 113.65 mm OAL ; 3 FL ; HSSCo ; 6H
| Thread Diameter Size (TDZ) | M4 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 0.7 mm | Cutting Edge Material | HSSCo |
| Thread Standard | Metric | Thread Tolerance Class (TCTR) | 6H |
| Overall Length (OAL) | 113.65 mm | Standard | DIN371 |
| Thread Cutting Part Length (THL) | 7 mm | Flute Type | Spiral |
| Usable Length (LU) | 21 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.046
