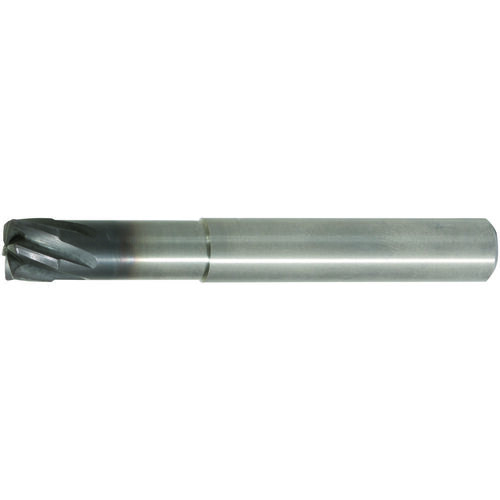

3/8X3/8X1.1/4X3.1/2 6FL SC CARB EM
Corner Radius End Mill; 3/8″ Dia. × 0.012″ LOC × 3/8″ Shank Dia. × 3-1/2″ OAL ; 6 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 3/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 0.012″ | Applicable Material | | Hard Materials | |
| Overall Length (OAL) | 3-1/2″ | Corner Radius (RE) | 0.023″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 20 Degrees|CW | Decimal Equivalent | 0.375″ |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.3000
