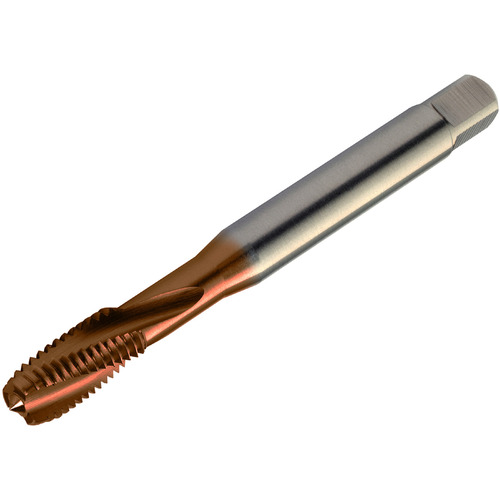

T300-XM100DB-M8X100 C110 COROTAP 300
Spiral Flute Tap; M8 × 1 mm ; 90 mm OAL ; 3 FL ; Carbide ; AlCrN ; 6H

Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M8 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1 mm | Cutting Edge Material | Carbide |
| Thread Standard | Metric | Thread Tolerance Class (TCTR) | 6H |
| Overall Length (OAL) | 90 mm | Standard | DIN374 |
| Thread Cutting Part Length (THL) | 13 mm | Coating | AlCrN |
| Usable Length (LU) | 67 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.2500
