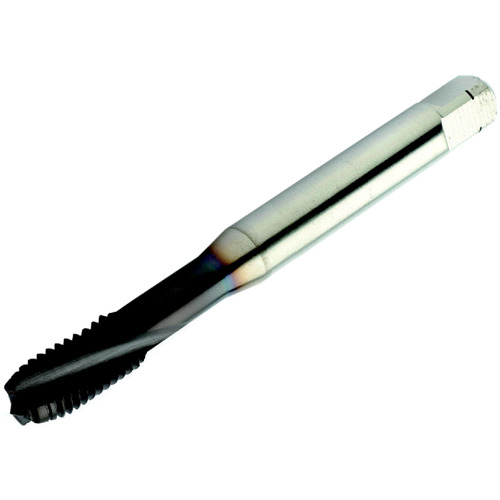

E88510-32 UNF ISO P Spl Fl 15d10-32
Spiral Flute Tap; #10 -32 × 80 mm OAL ; 3 FL ; HSSCoPM ; | NF | ; | 2B |
| Thread Diameter Size (TDZ) | #10 | Applicable Material | Steel |
| Threads per Inch (TPI) | 32 | Cutting Edge Material | HSSCoPM |
| Thread Standard | NF | Thread Tolerance Class (TCTR) | 2B |
| Overall Length (OAL) | 80 mm | Standard | DIN | ANSI |
| Thread Cutting Part Length (THL) | 17 mm | Flute Type | Spiral |
| Usable Length (LU) | 17 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 6.48 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Wire Gauge |
| Flute Helix Angle (FHA) | 15 Degrees |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
.2500
