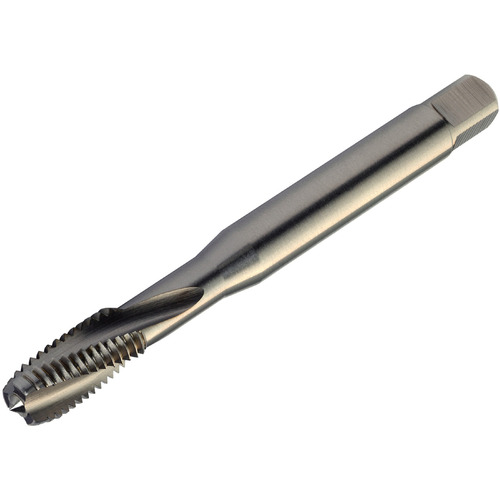

T300-XM100DA-M2 C150 COROTAP 300
Spiral Flute Tap; M2 × 0.4 mm ; 45.8 mm OAL ; 3 FL ; HSS-PM ; Uncoated ; 6H
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M2 | Applicable Material | | Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 0.4 mm | Cutting Edge Material | HSS-PM |
| Thread Standard | Metric | Thread Tolerance Class (TCTR) | 6H |
| Overall Length (OAL) | 45.8 mm | Standard | DIN371 |
| Thread Cutting Part Length (THL) | 4 mm | Coating | Uncoated |
| Usable Length (LU) | 9 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.2500
