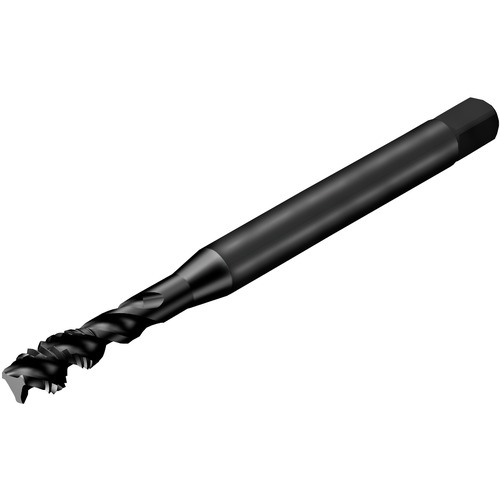

T300-XM104DA-M3 C145 COROTAP 300
Spiral Flute Tap; M3 × 0.5 mm ; 56 mm OAL ; 3 FL ; HSS-PM ; 6G
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M3 | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Thread Pitch (TP) | 0.5 mm | Cutting Edge Material | HSS-PM |
| Thread Standard | Metric | Thread Tolerance Class (TCTR) | 6G |
| Overall Length (OAL) | 56 mm | Standard | DIN371 |
| Thread Cutting Part Length (THL) | 5.9 mm | Flute Type | Spiral |
| Usable Length (LU) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.2500
