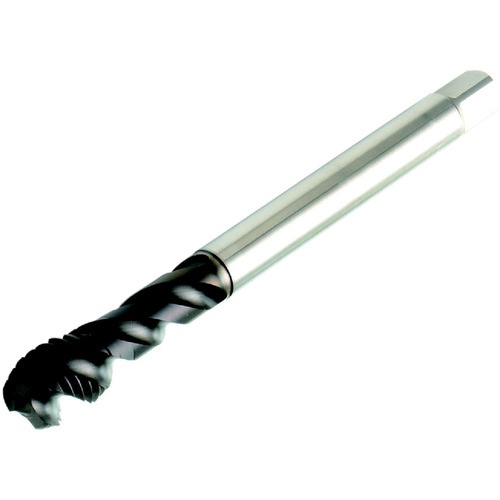

E8831/4 1/4-28 UNF
Spiral Flute Tap; 1/4″ - 28 ; 80 mm OAL ; 3 FL ; HSS-PM ; 2B
| Thread Diameter Size (TDZ) | 1/4″ | Applicable Material | | Stainless Steel | |
| Threads per Inch (TPI) | 28 | Cutting Edge Material | HSS-PM |
| Thread Standard | NF | Thread Tolerance Class (TCTR) | 2B |
| Overall Length (OAL) | 80 mm | Standard | DIN | ANSI |
| Thread Cutting Part Length (THL) | 10.2 mm | Flute Type | Spiral |
| Usable Length (LU) | 25.6 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 6.48 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 48 Degrees |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.049
