ECI-H7 375-750C375CF-3 IC902

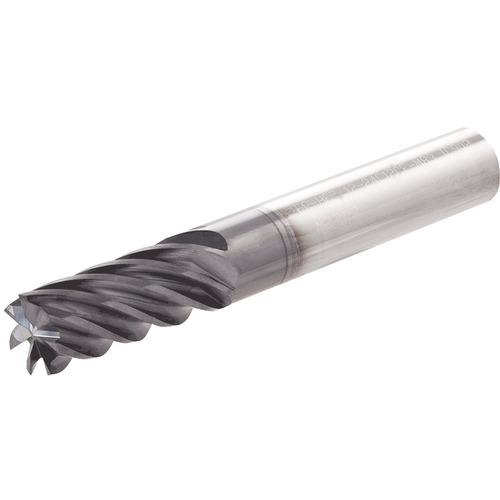

SQ End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 0″ RE ; 7 FL ; 3/4″ LBS ; Carbide ; AlTiN

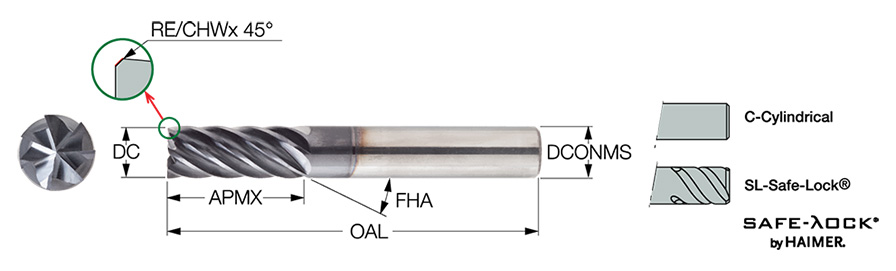

| Cutting Diameter (DC) | 3/8″ | Corner Radius (RE) | 0″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 3/4″ | Grade | IC902 |
| Overall Length (OAL) | 3″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0039 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Flute Count (NOF) | 7 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.375″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 3/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Helical Interpolation | Rampdown | Shouldering | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 7 flute endmills with different helix and variable pitch, for CHATTERFREE high speed / trochoidal milling and finishing perations. | Country of Origin | Israel |

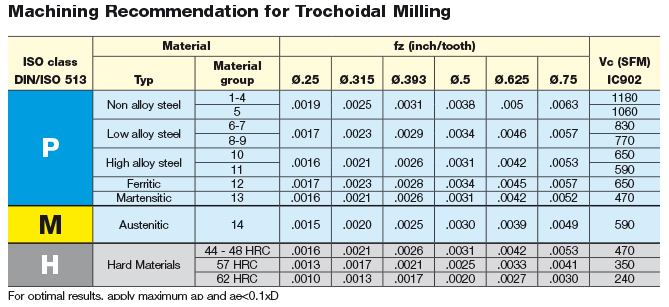

| Remarks | Can machine at radial width of cut (ae) of up to 0.10xDC For detailed cutting recommendations, click on More Info |
Shipping Info
Package Weight
0.176
