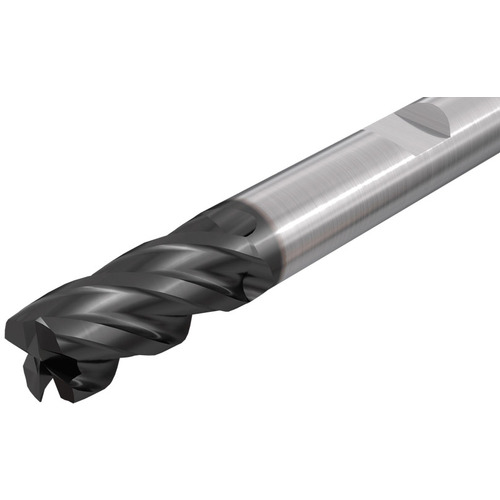

ECI-H4M 312-625C312CFE2.5 IC900
SQ End Mill; 0.312″ Dia. × 5/8″ LOC × 0.312″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; 5/8″ LBS ; Carbide ; AlTiN

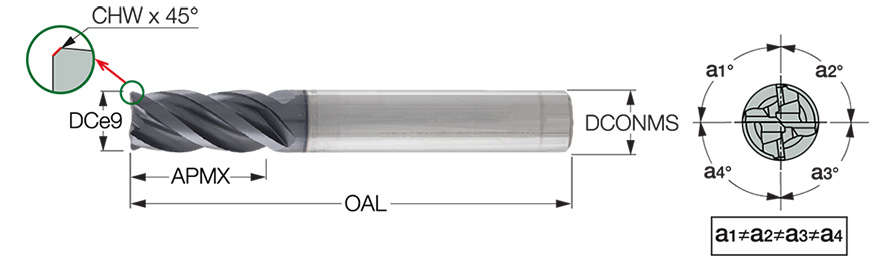

| Cutting Diameter (DC) | 0.312″ | Corner Chamfer Width (CHW) | 0.012″ |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 5/8″ | Grade | IC900 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.312″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Usable Length (LU) | 5/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e9 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 4 flute endmills with different helix (35° & 37°) and variable pitch for chatter damping. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.096
