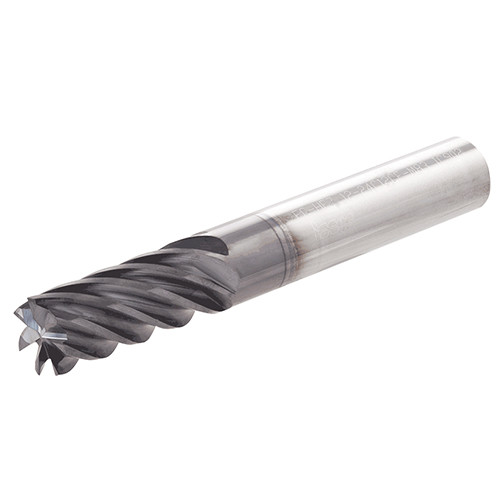

EC-H7 12-24W12CF-M83 IC902
SQ End Mill; 12 mm Dia. × 24 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 0 mm RE ; 7 FL ; 24 mm LBS ; Carbide ; AlTiN

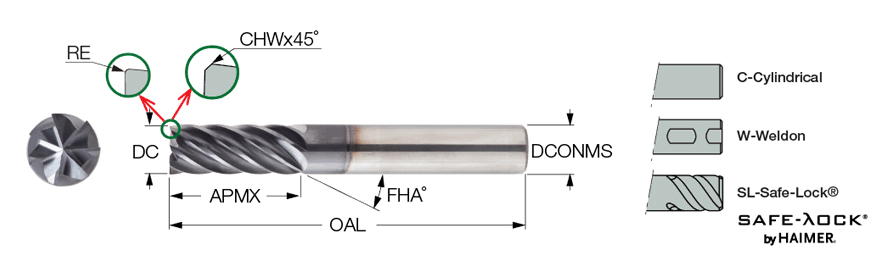

| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 24 mm | Grade | IC902 |
| Overall Length (OAL) | 83 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Flute Count (NOF) | 7 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 37 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 24 mm | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Shouldering | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 7 flute endmills with different helix and variable pitch for CHATTERFREE high speed / trochoidal milling and finishing operations. | Country of Origin | Israel |
| Remarks | Enables processing at a radial width of cut (AE) of up to 0.10xDC |
Shipping Info
Package Weight
0.281
