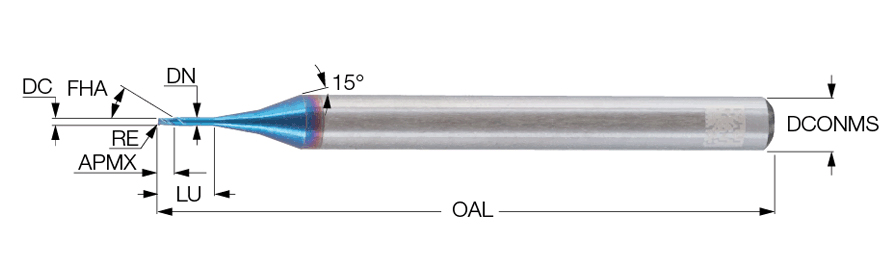

EC-A2 003-0045/015C4H45 IC702
| Cutting Diameter (DC) | 0.3 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 1.5 mm |
| Depth of Cut Maximum (APMX) | 0.45 mm | Applicable Material | Steel|Hard Materials| |
| Overall Length (OAL) | 45 mm | Grade | IC702 |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Center Cutting Endmills 90 Degrees |
| Coating | AlTiCCrSiN | Length Group | Short|Stub |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.035″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 2 flute, 30° helix solid carbide endmills for rib processing on hard materials up to 65 HRC. | Country of Origin | Israel |
Shipping Info
Package Weight
0.024
