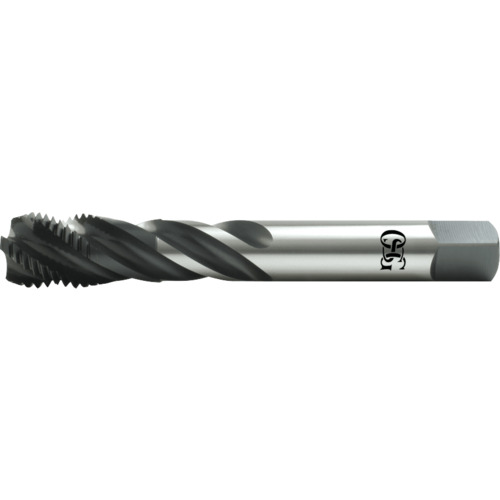

M24x3.0 Fl D19 HSSE Spiral Fl Tap- Steam Oxide
Spiral Flute Tap; M24 × 3 mm ; 160 mm OAL ; 5 FL ; HSSCo ; Black Oxide ; D19 ; Series 13117
| Thread Diameter Size (TDZ) | M24 | Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 3 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | Black Oxide |
| Overall Length (OAL) | 160 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 2-7/32″ | End Shape | Chamfer |
| Usable Length (LU) | 24 mm | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 19.3 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 13117 |
| Thread Tolerance Class (TCTR) | D19 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
6.35000
Package Width
1.20000
Package Height
1.05000
Package Weight
0.705
