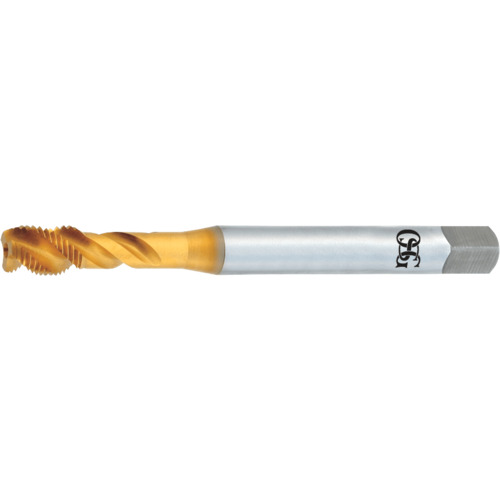

1-8 Dia.-2B-4 FL - HSSE - TIN - Modified Bottoming - Spiral Flute Tap
Spiral Flute Tap; 1″ - 8 ; 160 mm OAL ; 4 FL ; HSSCo ; TiN ; 2B ; Series 230
| Thread Diameter Size (TDZ) | 1″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 8 | Special Feature | DIN Length / Coolant Thru |
| Thread Standard | NC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 160 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 2-1/2″ | Coating | TiN |
| Usable Length (LU) | 3.012″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Style | Modified Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | 230 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
6.40000
Package Width
1.25000
Package Height
1.15000
Package Weight
0.74
