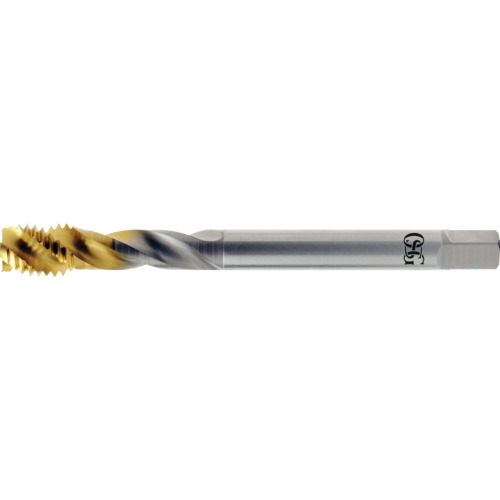

M18x2.5 0 Fl D7 HSSE Spiral Fl Tap- TiN
Spiral Flute Tap; M18 × 2.5 mm ; 125 mm OAL ; 4 FL ; HSSCo ; TiN ; D7 ; Series 16455
| Thread Diameter Size (TDZ) | M18 | Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 2.5 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 125 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-13/16″ | End Shape | Chamfer |
| Usable Length (LU) | 55 mm | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 13.76 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 16455 |
| Thread Tolerance Class (TCTR) | D7 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.90000
Package Height
.80000
Package Weight
.3050
