M6 1.0 D5 3FL MOD-BOTT AL DIN NIT

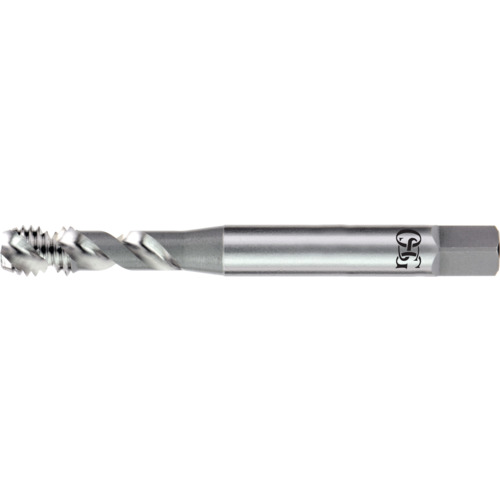

Spiral Flute Tap; M6 × 1 mm ; 80 mm OAL ; 3 FL ; HSSCo ; Nitride ; D5 ; Series 13119
| Thread Diameter Size (TDZ) | M6 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1 mm | Standard | DIN |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 80 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 1″ | Coating | Nitride |
| Usable Length (LU) | 28 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 6.47 mm | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 13119 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.55000
Package Width
.40000
Package Height
.35000
Package Weight
0.04
