1/4-20 H5 3FL BOTT TIN SP FL TAP

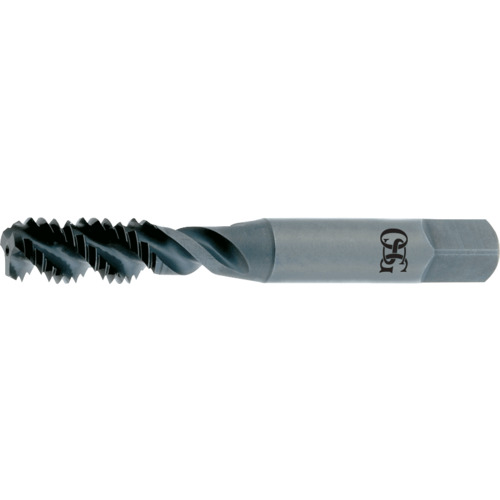

Spiral Flute Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 3 FL ; HSS ; TiN ; H5 ; Series 107
| Thread Diameter Size (TDZ) | 1/4″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 20 | Tool Type | Spiral Flute Tap |
| Thread Standard | NC | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2-1/2″ | Coating | TiN |
| Thread Cutting Part Length (THL) | 1″ | Flute Type | Spiral |
| Usable Length (LU) | 1.007″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Style | Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 107 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.30000
Package Weight
0.02
