2-56 H2 2FL TiCN MOD-BOT

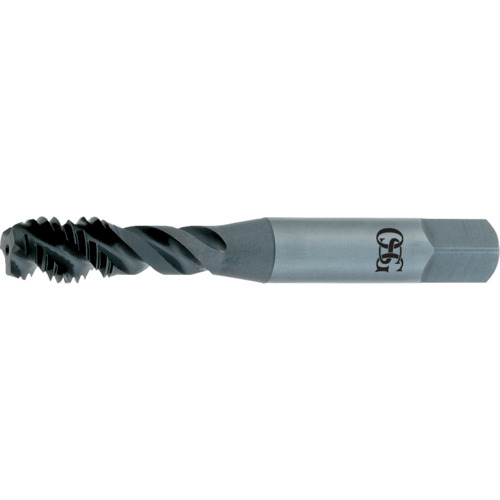

Spiral Flute Tap; #2 - 56 ; 1-3/4″ OAL ; 2 FL ; HSSCo ; TiCN ; H2 ; Series 290
| Thread Diameter Size (TDZ) | #2 | Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 56 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 1-3/4″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 7/16″ | Flute Type | Spiral |
| Usable Length (LU) | 0.476″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | Series/List # | 290 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.45000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
