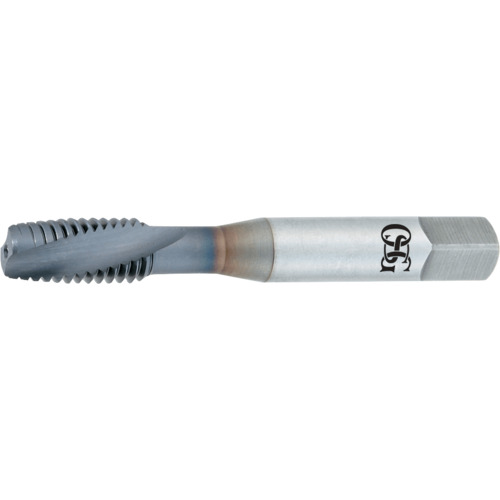

M3 0.5 Dia.-6H-2FL - HSSE - TiCN - Plug - Spiral Flute Tap
Spiral Flute Tap; M3 × 0.5 mm ; 1-15/16″ OAL ; 2 FL ; HSSCo ; TiCN ; 6H ; Series 13159
| Thread Diameter Size (TDZ) | M3 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 0.5 mm | Tool Type | Hand Tap |
| Thread Standard | Metric | Chamfer | 4P-4.5P |
| Overall Length (OAL) | 1-15/16″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 5/8″ | Flute Type | Spiral |
| Usable Length (LU) | 16 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | 13159 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.005
