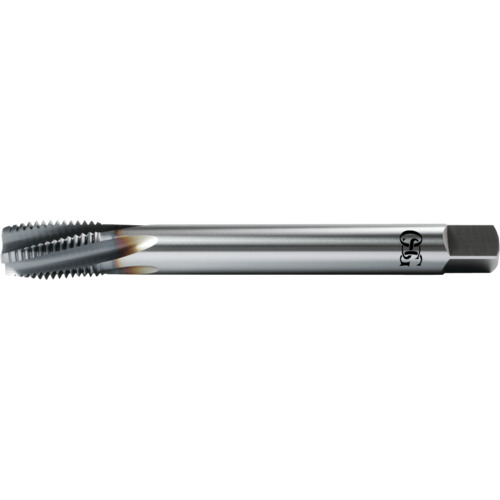

M27 3.0 Dia.-6H-5 FL - HSSE - TiCN - Plug - Spiral Flute Tap
Spiral Flute Tap; M27 × 3 mm ; 160 mm OAL ; 5 FL ; HSSCo ; TiCN ; 6H ; Series 13118
| Thread Diameter Size (TDZ) | M27 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 3 mm | Tool Type | Hand Tap |
| Thread Standard | Metric | Chamfer | 5P |
| Overall Length (OAL) | 160 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 2-1/2″ | Flute Type | Spiral |
| Usable Length (LU) | 88 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 22.75 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Series/List # | 13118 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
6.40000
Package Width
1.55000
Package Height
1.45000
Package Weight
.9750
