2-56 H2 2FL MOD-BOTT AL

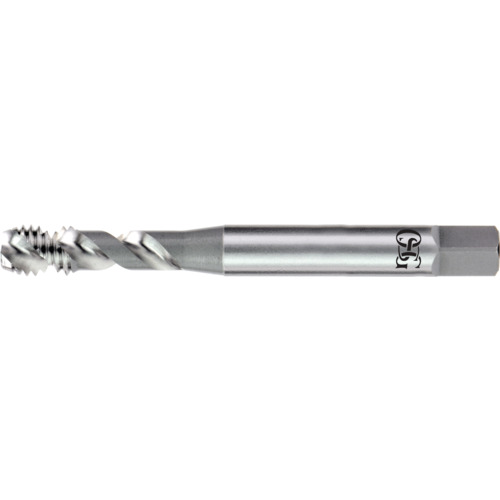

Spiral Flute Tap; #2 - 56 ; 45 mm OAL ; 2 FL ; HSSCo ; Nitride ; H2 ; Series 13019
| Thread Diameter Size (TDZ) | #2 | Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 56 | Standard | DIN |
| Thread Standard | NC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 45 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 7/16″ | Coating | Nitride |
| Usable Length (LU) | 0.437″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Style | Modified Bottoming |
| Flute Count (NOF) | 2 | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSCo | Series/List # | 13019 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.30000
Package Weight
0.01
