M4 0.7 D4 3FL MOD-BOTT AL DIN NIT

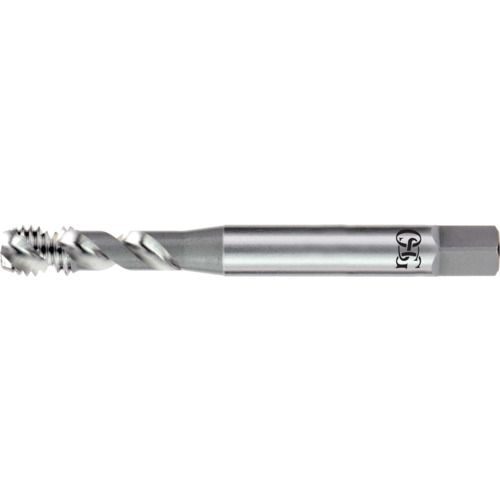

Spiral Flute Tap; M4 × 0.7 mm ; 63 mm OAL ; 3 FL ; HSSCo ; Nitride ; D4 ; Series 13119
| Thread Diameter Size (TDZ) | M4 | Thread Tolerance Class (TCTR) | D4 |
| Thread Pitch (TP) | 0.7 mm | Standard | DIN |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 63 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 3/4″ | Coating | Nitride |
| Usable Length (LU) | 21 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 4.26 mm | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 13119 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.016
