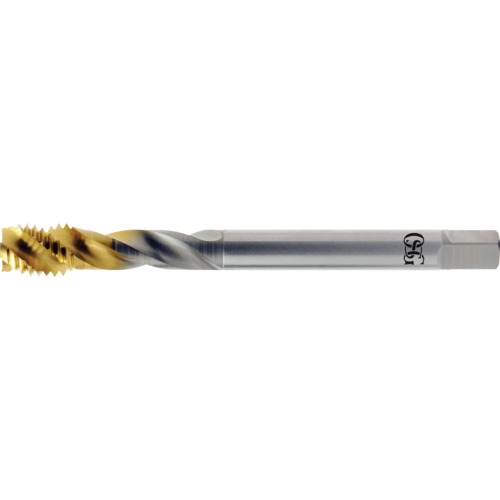

M8x1.25 0 Fl D4 HSSE Spiral Fl Tap- TiN
Spiral Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 3 FL ; HSSCo ; TiN ; D4 ; Series 16455
| Thread Diameter Size (TDZ) | M8 | Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 1.25 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 90 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-1/8″ | End Shape | Chamfer |
| Usable Length (LU) | 35 mm | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 16455 |
| Thread Tolerance Class (TCTR) | D4 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.45000
Package Height
.45000
Package Weight
.0650
