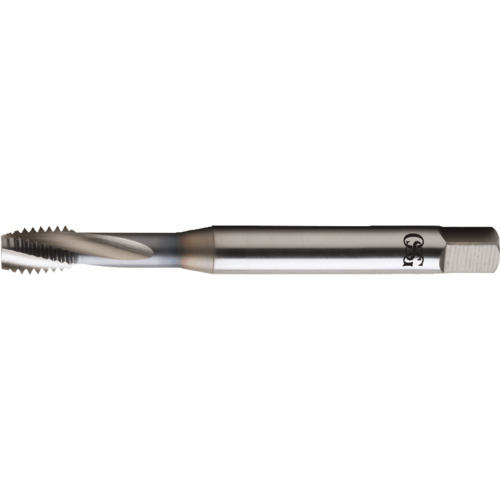

M20 1.5 Dia.-6H-4 FL - HSSE - V Coating - Bottoming - Spiral Flute Tap
Spiral Flute Tap; M20 × 1.5 mm ; 125 mm OAL ; 4 FL ; HSSCo ; TiCN ; 6H ; Series 13113
| Thread Diameter Size (TDZ) | M20 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1.5 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 125 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 2″ | Flute Type | Spiral |
| Usable Length (LU) | 62 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 16.56 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | 13113 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
1.00000
Package Height
.90000
Package Weight
0.38
