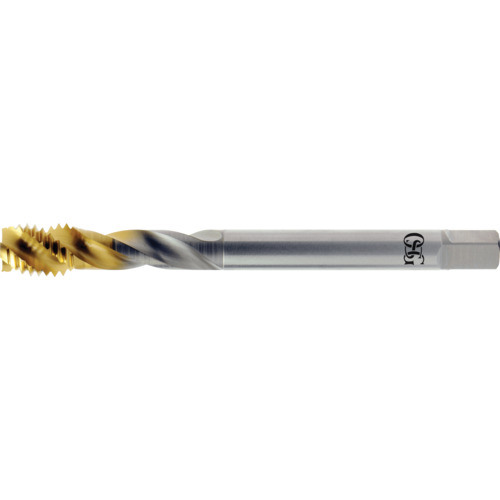

M4x0.7 0 Fl D4 HSSE Spiral Fl Tap- TiN
Spiral Flute Tap; M4 × 0.7 mm ; 63 mm OAL ; 2 FL ; HSSCo ; TiN ; D4 ; Series 16455
| Thread Diameter Size (TDZ) | M4 | Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 0.7 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 63 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 3/4″ | End Shape | Chamfer |
| Usable Length (LU) | 21 mm | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 4.26 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 16455 |
| Thread Tolerance Class (TCTR) | D4 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.015
