M5X0.8 3FL HS SEMI-BOTT

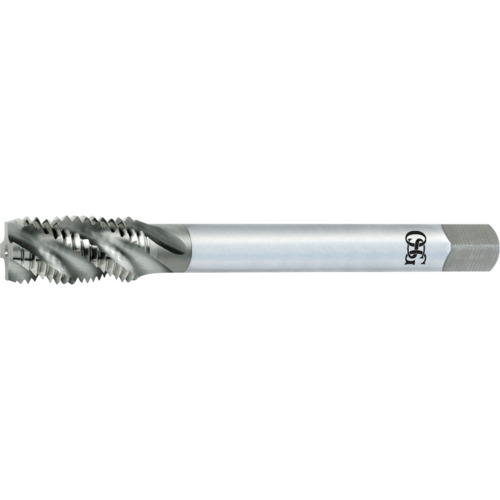

Spiral Flute Tap; M5 × 0.8 mm ; 60 mm OAL ; 3 FL ; HSS ; Uncoated ; 2 ; Series 123
| Thread Diameter Size (TDZ) | M5 | Thread Tolerance Class (TCTR) | 2 |
| Thread Pitch (TP) | 0.8 mm | Tool Type | Spiral Flute Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 60 mm | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 22 mm | Flute Type | Spiral |
| Usable Length (LU) | 26 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 5.5 mm | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 123 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
