M8X1.25 D11 3FL S/O

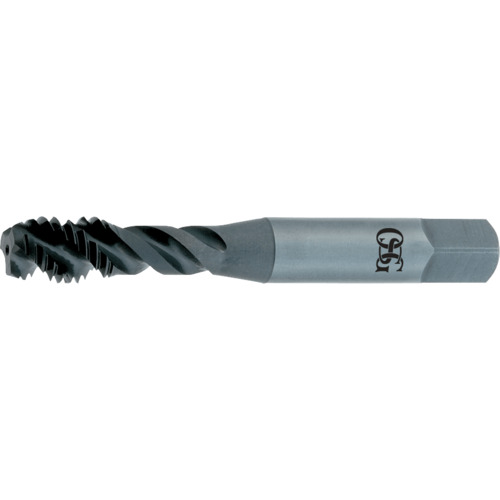

Spiral Flute Tap; M8 × 1.25 mm ; 2-23/32″ OAL ; 3 FL ; HSSCo ; Black Oxide ; D11 ; Series 299
| Thread Diameter Size (TDZ) | M8 | Thread Tolerance Class (TCTR) | D11 |
| Thread Pitch (TP) | 1.25 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2-23/32″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 1-1/8″ | Flute Type | Spiral |
| Usable Length (LU) | 29 mm | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 299 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.60000
Package Width
.50000
Package Height
.45000
Package Weight
0.05
