5/16 24 H5 3RX 2.5P WHR

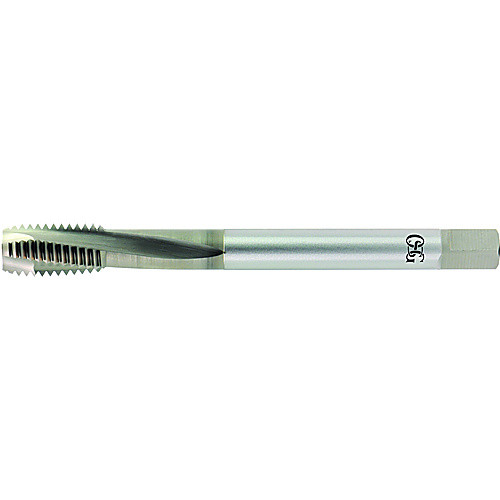

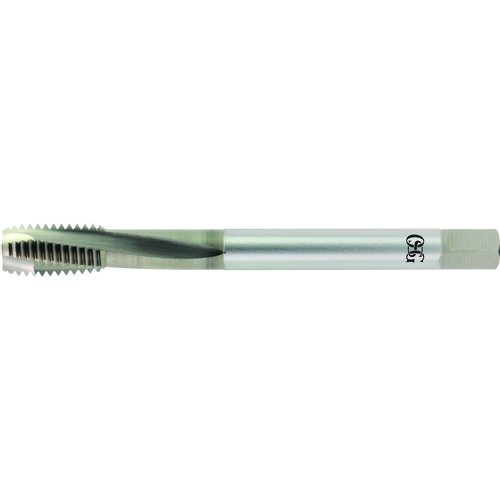

Spiral Flute Tap; 5/16″ - 24 ; 2-23/32″ OAL ; 3 FL ; HSS-PM ; H5 ; Series 335NI
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 24 | Tool Type | Spiral Flute Tap |
| Thread Standard | NF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2-23/32″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-1/8″ | End Shape | Chamfer |
| Usable Length (LU) | 1.377″ | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 0.317″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS-PM | Series/List # | 335NI |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.45000
Package Height
.45000
Package Weight
0.07
