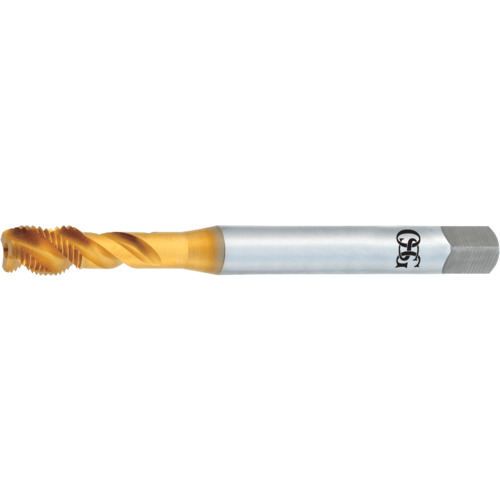

M10 1.25 Dia.-6H-3 FL - HSS - TiN - Modified Bottom Spiral Flute Tap
Spiral Flute Tap; M10 × 1.25 mm ; 100 mm OAL ; 3 FL ; HSSCo ; TiN ; 6H ; Series 239
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1.25 mm | Special Feature | DIN Length / Coolant Thru |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 100 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 1-1/4″ | Coating | TiN |
| Usable Length (LU) | 39 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 239 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.50000
Package Width
.60000
Package Height
.55000
Package Weight
0.1
