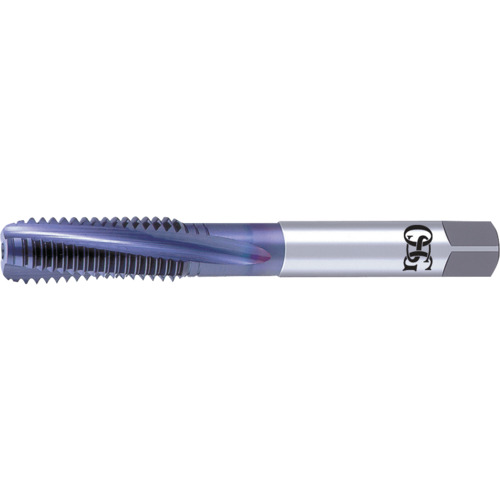

M12 1.75 Dia. - D6-3 FL - VC10 - TiCN - Modified Bottoming - Spiral Flute Tap
Spiral Flute Tap; M12 × 1.75 mm ; 3-3/8″ OAL ; 3 FL ; HSS-PM ; TiCN ; D6 ; Series 345TI
| Thread Diameter Size (TDZ) | M12 | Thread Tolerance Class (TCTR) | D6 |
| Thread Pitch (TP) | 1.75 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 3-3/8″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-21/32″ | Flute Type | Spiral |
| Usable Length (LU) | 49.1 mm | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 345TI |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.1
