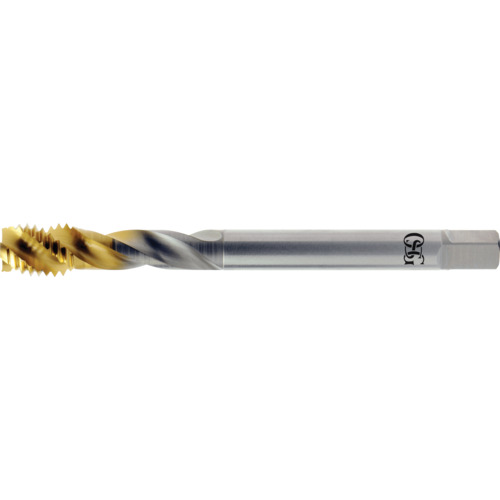

M14x2 0 Fl D5 HSSE Spiral Fl Tap- TiN
Spiral Flute Tap; M14 × 2 mm ; 110 mm OAL ; 3 FL ; HSSCo ; TiN ; D5 ; Series 16455
| Thread Diameter Size (TDZ) | M14 | Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 2 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 110 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-21/32″ | End Shape | Chamfer |
| Usable Length (LU) | 50.1 mm | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 10.89 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 16455 |
| Thread Tolerance Class (TCTR) | D5 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.05000
Package Width
.90000
Package Height
.85000
Package Weight
.1800
