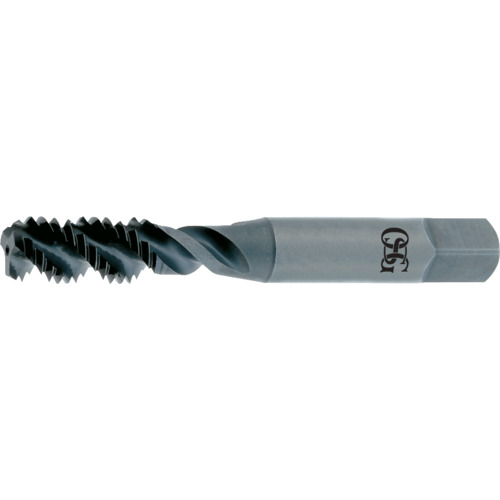

5/16-24 Dia.-2B-3 FL - HSS - TiN - Bottoming - Spiral Flute Tap
Spiral Flute Tap; 5/16″ - 24 ; 2-23/32″ OAL ; 3 FL ; HSS ; TiN ; 2B ; Series 298
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 24 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2-23/32″ | Coating | TiN |
| Thread Cutting Part Length (THL) | 1-1/8″ | Flute Type | Spiral |
| Usable Length (LU) | 1-1/8″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 298 |
| Cutting Edge Material | HSS |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.60000
Package Width
.45000
Package Height
.45000
Package Weight
0.05
