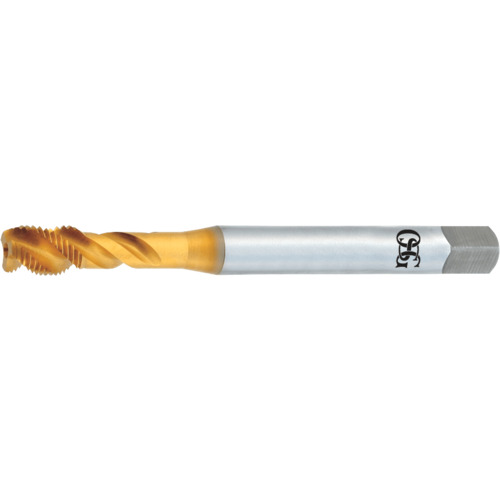

1/2-20 Dia.-2B-3 FL - HSS - TiN - Modified Bottom Spiral Flute Tap
Spiral Flute Tap; 1/2″ - 20 ; 100 mm OAL ; 3 FL ; HSSCo ; TiN ; 2B ; Series 230
| Thread Diameter Size (TDZ) | 1/2″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 20 | Special Feature | DIN Length / Coolant Thru |
| Thread Standard | NF | Tool Type | High Performance Tap |
| Overall Length (OAL) | 100 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 1-21/32″ | Coating | TiN |
| Usable Length (LU) | 1.933″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | 230 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.00000
Package Width
.70000
Package Height
.65000
Package Weight
0.114
