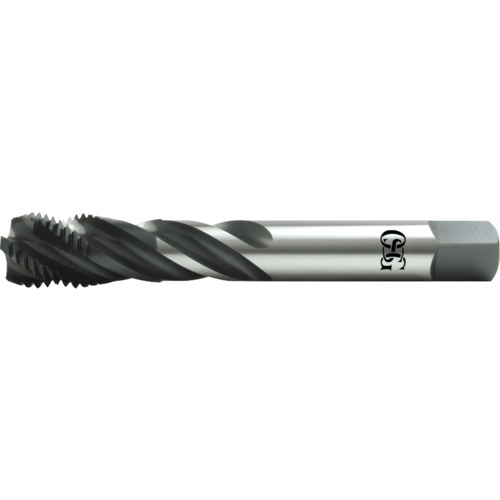

M20x2.5 Fl D18 HSSE Spiral Fl Tap- Steam Oxide
Spiral Flute Tap; M20 × 2.5 mm ; 140 mm OAL ; 4 FL ; HSSCo ; Black Oxide ; D18 ; Series 13117
| Thread Diameter Size (TDZ) | M20 | Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 2.5 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | Black Oxide |
| Overall Length (OAL) | 140 mm | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 2″ | End Shape | Chamfer |
| Usable Length (LU) | 20 mm | Style | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 16.56 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 13117 |
| Thread Tolerance Class (TCTR) | D18 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.55000
Package Width
1.00000
Package Height
.90000
Package Weight
.4200
