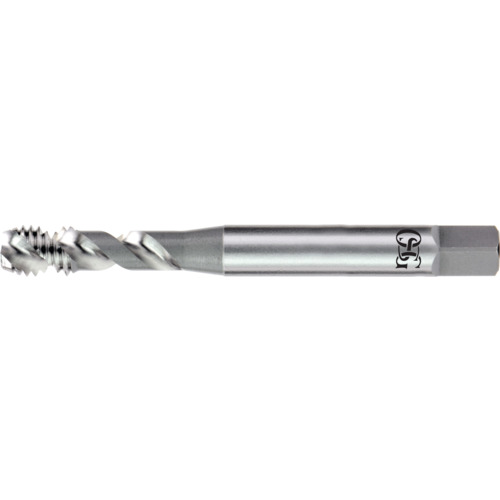

M10X1.5 D6 3FL MOD-BOTT
Spiral Flute Tap; M10 × 1.5 mm ; 100 mm OAL ; 3 FL ; HSSCo ; Nitride ; D6 ; Series 13119
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | D6 |
| Thread Pitch (TP) | 1.5 mm | Standard | DIN |
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Overall Length (OAL) | 100 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 1-1/4″ | Coating | Nitride |
| Usable Length (LU) | 39 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSCo | Series/List # | 13119 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.60000
Package Height
.55000
Package Weight
0.105
