M10X1.25 OH4 1.5P OT-SFT

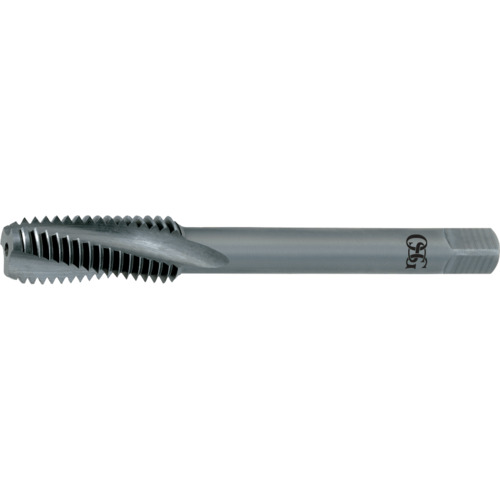

Spiral Flute Tap; M10 × 1.25 mm ; 75 mm OAL ; 3 FL ; Carbide ; Uncoated ; OH4 ; Series 389
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | OH4 |
| Thread Pitch (TP) | 1.25 mm | Tool Type | Spiral Flute Tap |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 75 mm | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 32 mm | Flute Type | Spiral |
| Usable Length (LU) | 24 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Style | Spiral Flute |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Series/List # | 389 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.65000
Package Width
.60000
Package Height
.55000
Package Weight
.0950
