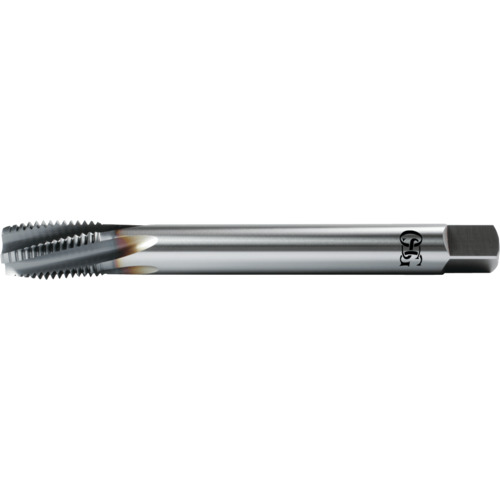

M36 4.0 Dia.-6H-6FL - HSSE - TiCN - Plug - Spiral Flute Tap
Spiral Flute Tap; M36 × 4 mm ; 200 mm OAL ; 6 FL ; HSSCo ; TiCN ; 6H ; Series 13118
| Thread Diameter Size (TDZ) | M36 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 4 mm | Tool Type | Hand Tap |
| Thread Standard | Metric | Chamfer | 5P |
| Overall Length (OAL) | 200 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 3″ | Flute Type | Spiral |
| Usable Length (LU) | 118 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 31.31 mm | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Series/List # | 13118 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
4.0000
