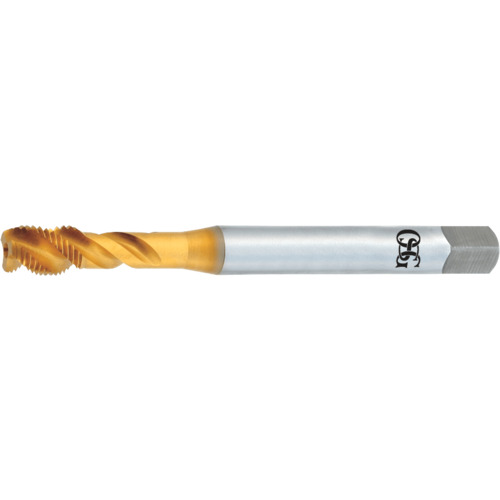

3/4-16 Dia.-2B-4 FL - HSS - TiN - Modified Bottom Spiral Flute Tap
Spiral Flute Tap; 3/4″ - 16 ; 110 mm OAL ; 4 FL ; HSSCo ; TiN ; 2B ; Series 230
| Thread Diameter Size (TDZ) | 3/4″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 16 | Special Feature | DIN Length / Coolant Thru |
| Thread Standard | NF | Tool Type | High Performance Tap |
| Overall Length (OAL) | 110 mm | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 2″ | Coating | TiN |
| Usable Length (LU) | 2.433″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Style | Modified Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | 230 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
1.00000
Package Height
.90000
Package Weight
0.28
