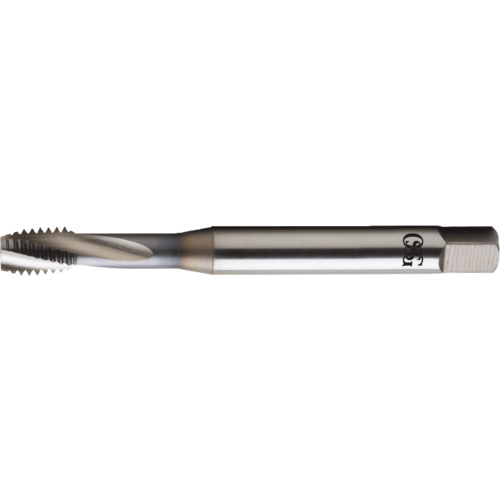

7/16-20 Dia.-2B-3 FL - HSSE - V Coating - Bottoming - Spiral Flute Tap
Spiral Flute Tap; 7/16″ - 20 ; 100 mm OAL ; 3 FL ; HSSCo ; TiCN ; 2B ; Series 13013
| Thread Diameter Size (TDZ) | 7/16″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 20 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 100 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-7/16″ | Flute Type | Spiral |
| Usable Length (LU) | 1.712″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.322″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 13013 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.70000
Package Weight
0.09
