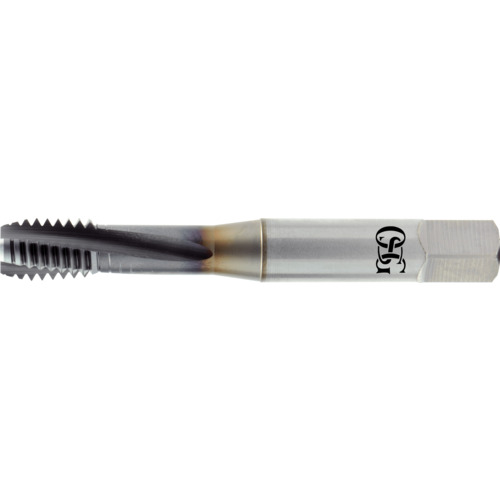

7/8-14ﾇ H5-4FL-VC10 TiCN-Semi-Bott Spiral Point Tap
Spiral Flute Tap; 7/8″ - 14 ; 4.68″ OAL ; HSS-PM ; H5
| Thread Diameter Size (TDZ) | 7/8″ | Cutting Edge Material | HSS-PM |
| Threads per Inch (TPI) | 14 | Thread Tolerance Class (TCTR) | H5 |
| Thread Standard | UNF | Tool Type | Spiral Flute Tap |
| Overall Length (OAL) | 4.68″ | Chamfer | 2.5P-3P |
| Usable Length (LU) | 2.653″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.697″ |
Product Features
| Remarks | •High Performance Spiral Fluted Taps for Nickel Based Alloys •VC-10 Premium Powered High Speed Steel •Modifed Bottom Chamfer •OSG's Multi-layer Coating | Country of Origin | Japan |
Shipping Info
Package Length
4.75000
Package Width
1.05000
Package Height
1.00000
Package Weight
0.46
