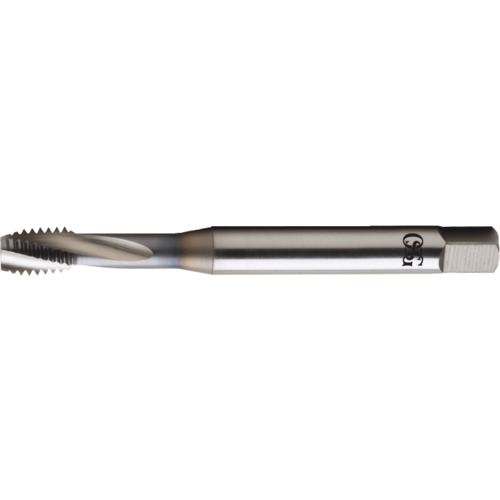

5/16-18 Dia.-2B-3 FL - HSSE - V Coating - Bottoming - Spiral Flute Tap
Spiral Flute Tap; 5/16″ - 18 ; 90 mm OAL ; 3 FL ; HSSCo ; TiCN ; 2B ; Series 13013
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 18 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 90 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-1/8″ | Flute Type | Spiral |
| Usable Length (LU) | 1.377″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.317″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 13013 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.50000
Package Height
.45000
Package Weight
0.06
