Soft Jaw 1.5 mm 60° Serrated Single Step Rev Hard Jaw

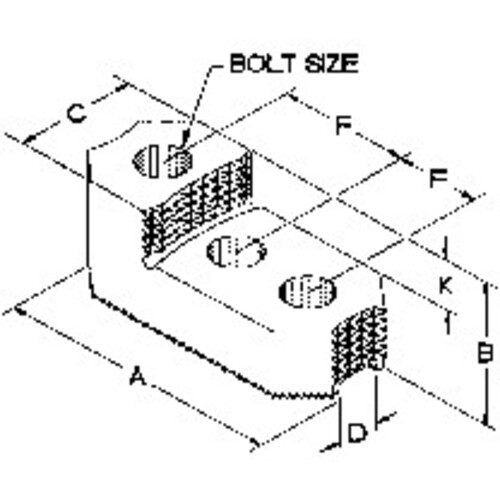

| Compatible Chuck Size | 12″ (B 12) | System of Measurement | Metric |
| Jaw Type | Soft Jaw Each for Kitagawa | Style | Reversible Hard Jaw |
| Serration | 1.5 mm @ 60° | Type | Soft Jaw |
| Material | 1018 mild steel | Dimension D | .710″ |
| Bolt Size | 14 mm | Dimension F | 1.181″ |
| Height | 2 1/2″ | Jaw Length | 4 7/8″ |
| Number of Holes | 3 | Dimension K | 1.300″ |
| Number of Steps | 1 | Jaw Width | 2″ |
| Overall Height | 2 1/2″ | For Use With | Kitagawa, Matsumoto, Howa & Seike, PBA, Autoblok, Schunk |
Product Features
| Remarks | •Metric Serrated Double and Single Step Reversible Hard Jaws •1.5 mm (0.0591) 60 Degree Serration For Chucks Made by Kitagawa, Matsumoto, Howa & Seike, PBA, Autoblok, Schunk, Strong All Jaws are made from 1018 mild steel. | Country of Origin | USA |
Shipping Info
Package Weight
3.7
