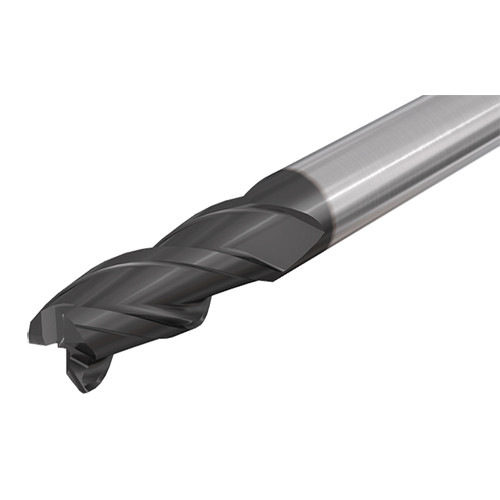

EC010E025-3C03 IC900
SQ End Mill; 1 mm Dia. × 2.5 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 0 mm RE ; 3 FL ; Carbide ; AlTiN

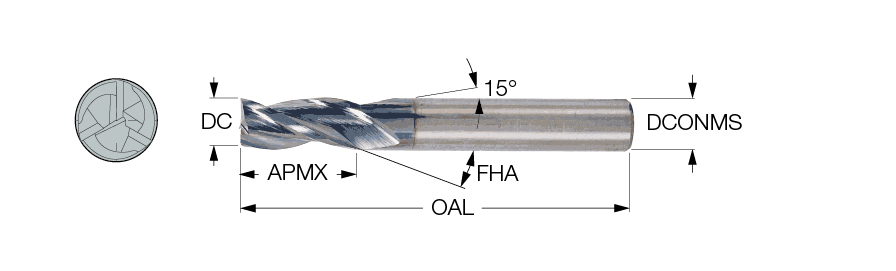

| Cutting Diameter (DC) | 1 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 2.5 mm | Grade | IC900 |
| Overall Length (OAL) | 38 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.01 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.01 mm/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 3 flute, 38° helix medium length solid carbide endmills. | Country of Origin | Israel |
| Remarks | Multi-purpose endmill. Suitable for deep slotting. |
Shipping Info
Package Weight
0.024
