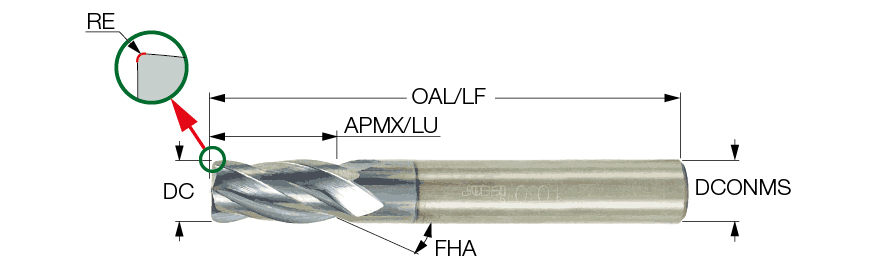

ECI-E-3R 500-1.0-C030 IC900
| Cutting Diameter (DC) | 1/2″ | Application | Counter Boring | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 1″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 3″ | Grade | IC900 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 3 flute 38° helix medium length solid carbide endmills with assorted radii. | Country of Origin | Israel |
Shipping Info
Package Weight
0.305
