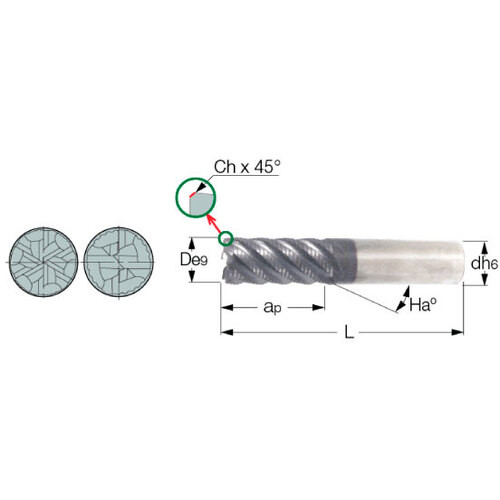

47C06014WRRN020 IN2005
SQ End Mill; 0.236″ Dia. × 0.551″ LOC × 0.236″ Shank Dia. × 2.244″ OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 0.236″ | Application | | Drill Mill | Drilling | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Corner Chamfer Width (CHW) | 0.03″ |
| Depth of Cut Maximum (APMX) | 0.551″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 2.244″ | Grade | IN2005 |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.236″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| End Shape | Chamfer | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Corner chamfer Roughing applications | Country of Origin | Israel |
Shipping Info
Package Weight
0.055
