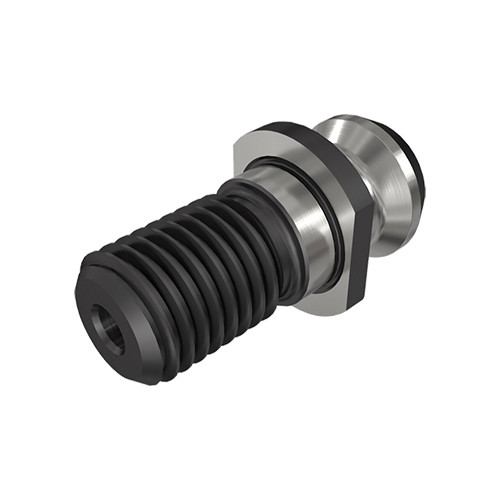

PS BT40 45 M16 MAZAKBO
| Shank Size (SS) | 40 | Measurement Type | Inch |
| Body Diameter (BD) | 0.74″ | Tool Type | PS MAZAK |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Half Taper Angle (BHTA) | 45 Degrees |
| Body Length (LB) | 0.552″ | Body Material | Steel |
| Overall Length (OAL) | 1.736″ | Flange to Knob Length | 0.91″ |
| Body Length_2 (LB_2) | 0.752″ | Flange to Angle Length | 0.71″ |
| Application | | Collets & Accessories | |
Product Features
| Family Description | BT pull stud with ANSI Retention knob for MAZAK machines. | Country of Origin | Italy |

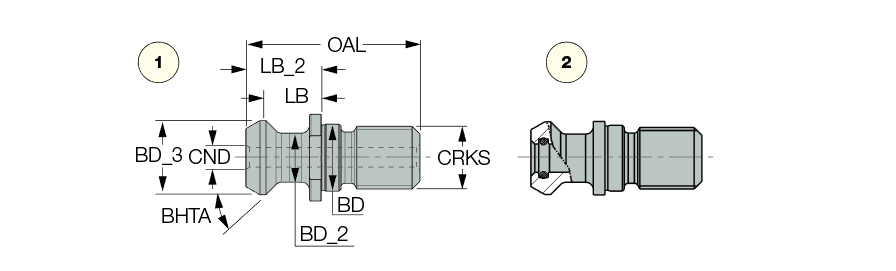

| Remarks | Fig 1: With coolant hole only Fig 2: With coolant hole and internal O-ring |
Shipping Info
Package Weight
0.128
